- Place of Origin: RIZHAO SHANDONG CHINA
- Brand Name: RJ
- Model Number: DG25-50*7,DG46-50*9,DG46-50*12,DG45-80*7,DG45-80*8,DG65-80*8,DG85-80*7,DG85-80*8,DG85-80*10

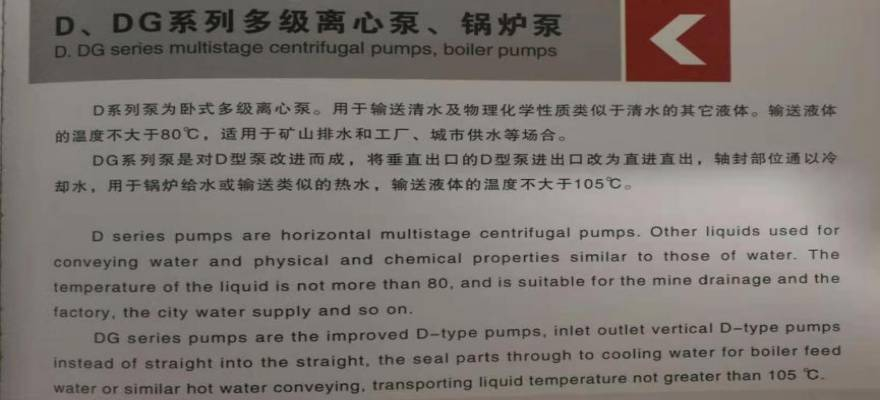

DG series pumps are horizontal multistage centrifugal pumps. Other liquids used for conveying Water and physical and chemical properties similar to those of water. The temperature of the liquid is not more than 80, and is suitable for the mine drainage and the factory, the city water supply and so on.
DG series pumps are the improved D-type pumps, inlet outlet vertical D-type pumps instead of straight into the straight, the seal parts through to cooling water for boiler feed water or similar hot water conveying, transporting liquid temperature not greater than 105 ℃.
DG series high pressure boiler feed water pumps are horizontal, single suction, multistage, segmental centrifugal pumps, the suction and export are vertical upward, the overall use of central support structure. Can be used as a high pressure boiler water supply or other high pressure water supply, transmission medium temperature is generally not more than 160℃. Performance range: flow 15-240 m3/h, head 390-1110m.
Pumps rotation direction: from the drive end, the pumps are clockwise rotation.
- Place of Origin: RIZHAO SHANDONG CHINA
- Brand Name: RJ
- Model Number: DG25-50*7,DG46-50*9,DG46-50*12,DG45-80*7,DG45-80*8,DG65-80*8,DG85-80*7,DG85-80*8,DG85-80*10
| Model | capacity(m3/h) | single stage head(m) | stage | power |
| DG25-30 | 15~30 | 30 | 3~10 | 15~45 |
| DG25-50 | 15~30 | 50 | 3~12 | 30~110 |
| DG46-50 | 35~55 | 50 | 3~12 | 37~132 |
| DG85-67 | 55~100 | 67 | 3~9 | 90~250 |
| DG155-67 | 100~185 | 67 | 3~9 | 132~450 |
