Product Details
- Place of Origin: Rizhao Shandong China
- Brand Name: RJ
- Model Number: DG45-80*7,DG65-80*8,DG85-80*7,DG85-80*8,DG85-80*10,DG150-100*8

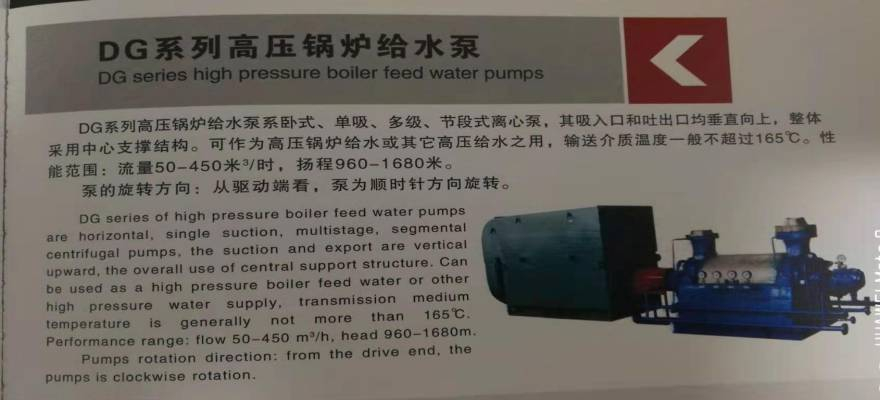

DG series high pressure boiler feed water pumps are horizontal, single suction, multistage, segmental centrifugal pumps, the suction and export are vertical upward, the overall use of central support structure. Can be used as a high pressure boiler water supply or other high pressure water supply, transmission medium temperature is generally not more than 160℃. Performance range: flow 15-240 m3/h, head 390-1110m.
Pumps rotation direction: from the drive end, the pumps are clockwise rotation.
- Place of Origin: Rizhao Shandong China
- Brand Name: RJ
- Model Number: DG45-80*7,DG65-80*8,DG85-80*7,DG85-80*8,DG85-80*10,DG150-100*8
| Model | capacity(m3/h) | single stage head (m) | stage | EFF(%) | Power(Kw) | |
| DG25-80 | 15~30 | 80 | 5~12 | 45 | 75~200 | |
| DG45-80 | 36~62 | 80 | 5~12 | 55 | 132~280 | |
| DG85-80 | 54~108 | 80 | 5~12 | 65 | 200~450 | |
| DG150-100 | 120~180 | 100 | 5~10 | 70 | 355~800 | |
| DG200-100 | 140~240 | 100 | 5~10 | 73 | 450~900 | |
